Nemesis Research  |  SKU: OSCA-O4

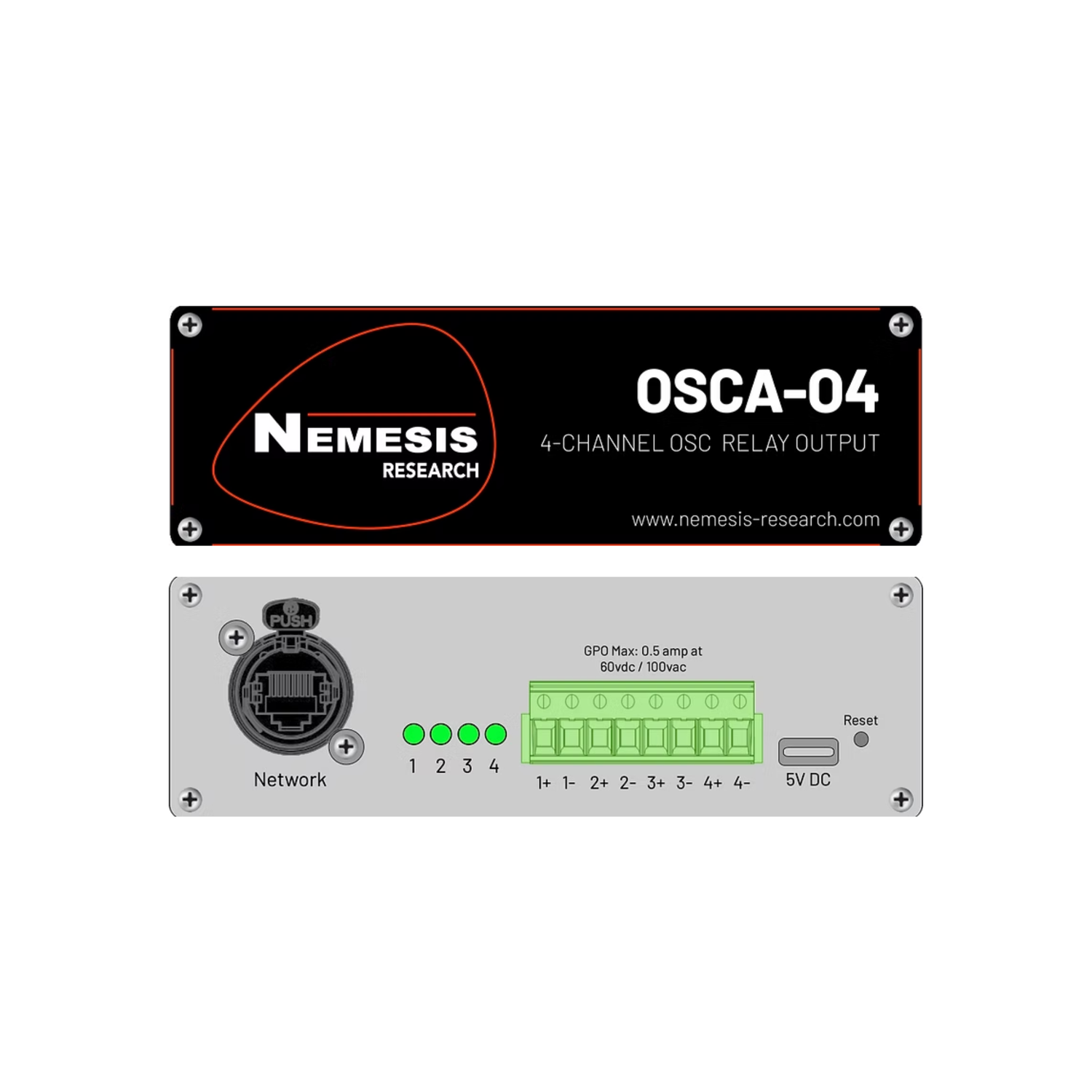

Nemesis OSCA-O4 4 Channel Osc Gpo Output

£412.50

Nemesis OSCA-O4 4 Channel Osc Gpo Output is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description
The OSCA-O4 allows control only limited by your imagination of devices that require a simple contact closure to activate command by converting the OSC command to relay close, relay open, or momentary action. Applications range from sending a command to the GPI input of non-OSC equipped mixing consoles to opening a door lock, triggering a Kabuki drop, mechanical automation control and interfacing with applications like ONLX Ctrl Suite.

The OSCA-O4 is incredibly easy to program - simply plug it into your laptop, type in the IP address and a simple but powerful user interface takes you through all the steps. If the Osca OSC network is connected to the internet, remote programming and triggering is possible via VPN, together with system updates and future upgrades. Fully compatible with all 3rd party OSC commands and the Nemesis OSCA  range.

Key features:
  • 4 independent volt free GPO relay control outputs
  • Latching or momentary action
  • Contacts rated at 0.5 amp 60VDC or 100VAC (max)​ each
  • Relay LED status lights
  • Outputs via industrial Phoenix style connector (matching part number 1757307)
  • Simple yet powerful programming via embedded user interface (no need for set up programs or internet connection)
  • Fully compatible with all 3rd party OSC commands and Nemesis OSCA Button box range
  • Internet enabled for updates and upgrades
  • DHCP served or fixed IP address
  • Industrial Ethercon network connector
  • Multicolour LED showing network and power status
  • Recessed “reset” button
  • Power over ethernet enabled (POE IEEE 802.3 compliant)
  • Alternative 5VDC powered (USB C-Type)

Supplied in the box:
  • OSCA-O4
  • 1m CAT5 cable
  • Mating Phoenix style connector
