Nemesis Research  |  SKU: OSCA-I8

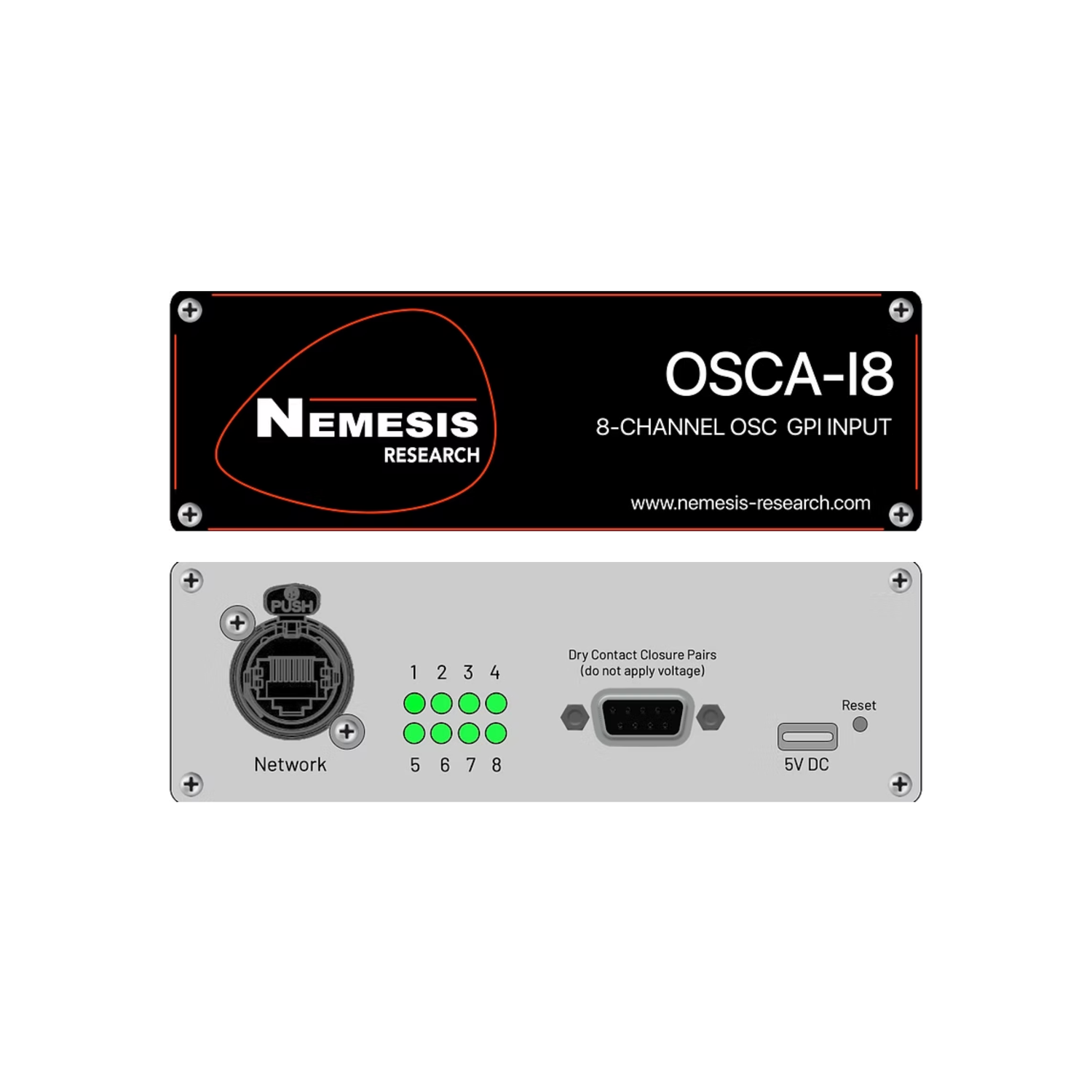

Nemesis OSCA-I8 8 Channel Osc Gpi Input

£448.50

Nemesis OSCA-I8 8 Channel Osc Gpi Input is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description
The OSCA-I8 converts simple GPO dry contact closure like remote buttons or triggers into powerful OSC network commands. The 8 opto-isolated inputs also allow connection to  low volt logic circuits. Applications range from interfacing third party devices like mixing consoles, automation controllers, motion sensors or switches and buttons into OSC commands freely dictated by the user.

The OSCA-I8 has eight individual input channels allowing eight separate GPO to be connected simultaneously. Multiple OSCA-I8  units can be deployed on a single OSC network, allowing complex and creative control scenarios to be achieved in a robust and coherent fashion.
​
The OSCA-I8 also allows direct, simple connection to the industry standard 8 button REM8D -  ideal for controlling QLab and other OSC devices.

The OSCA-I8 is incredibly easy to program - simply plug it into your laptop, type in the IP address and a simple but powerful user interface takes you through all the steps. If the Osca OSC network is connected to the internet, remote programming and triggering is possible via VPN, together with system updates and future upgrades. Fully compatible with all 3rd party OSC commands and the Nemesis OSCA  range.

The OSCA-I8 features configuration backup and restore, so you never have to remember your settings.

After purchase OSCA-I8 can be upgraded to Pro Spec, adding additional power and functionality for the most demanding show control applications

Key features:
  • 8 independent volt free dry contact GPI inputs
  • Variable “de-bounce” (0 > 2000ms)
  • Each OSCA-I8 can hold up to 5 OSC network device destinations in its memory*
  • Each of the 8 inputs can send a message to 2 separate OSC network device destinations at the same time**
  • Input LED status lights
  • Inputs via 9 pin D-SUB connector
  • 8 opto-isolated inputs for dry contact closure & low volt logic circuits
  • Simple yet powerful programming via embedded user interface (no need for set up programs or internet connection)
  • Presets for basic Qlab, CSC and Nemesis OSCA-O4 Relay Box operation
  • Advanced mode for free-form complex OSC string commands
  • Fully compatible with all 3rd party OSC commands and Nemesis OSCA range
  • Config download, backup and restore
  • Internet enabled for updates and upgrades
  • DHCP served or fixed IP address
  • Industrial Ethercon network connector
  • Multicolour LED showing network and power status
  • Recessed “reset” button
  • Power over ethernet enabled (POE IEEE 802.3 compliant)
  • Alternative 5VDC powered (USB C-Type)


OSCA-I8-PRO upgrade:
*   Each OSCA-I8-PRO can hold up to 8 OSC network device destinations in its memory
** Each of the 8 individual GPI inputs can send 4 individual commands to 4 separate OSC network device destinations at the same time


Supplied in the box:
  • OSCA-I8
  • 1m CAT5 cable
  • Matching 9 pin D-SUB Male connector
  • Pin configuration diagram
