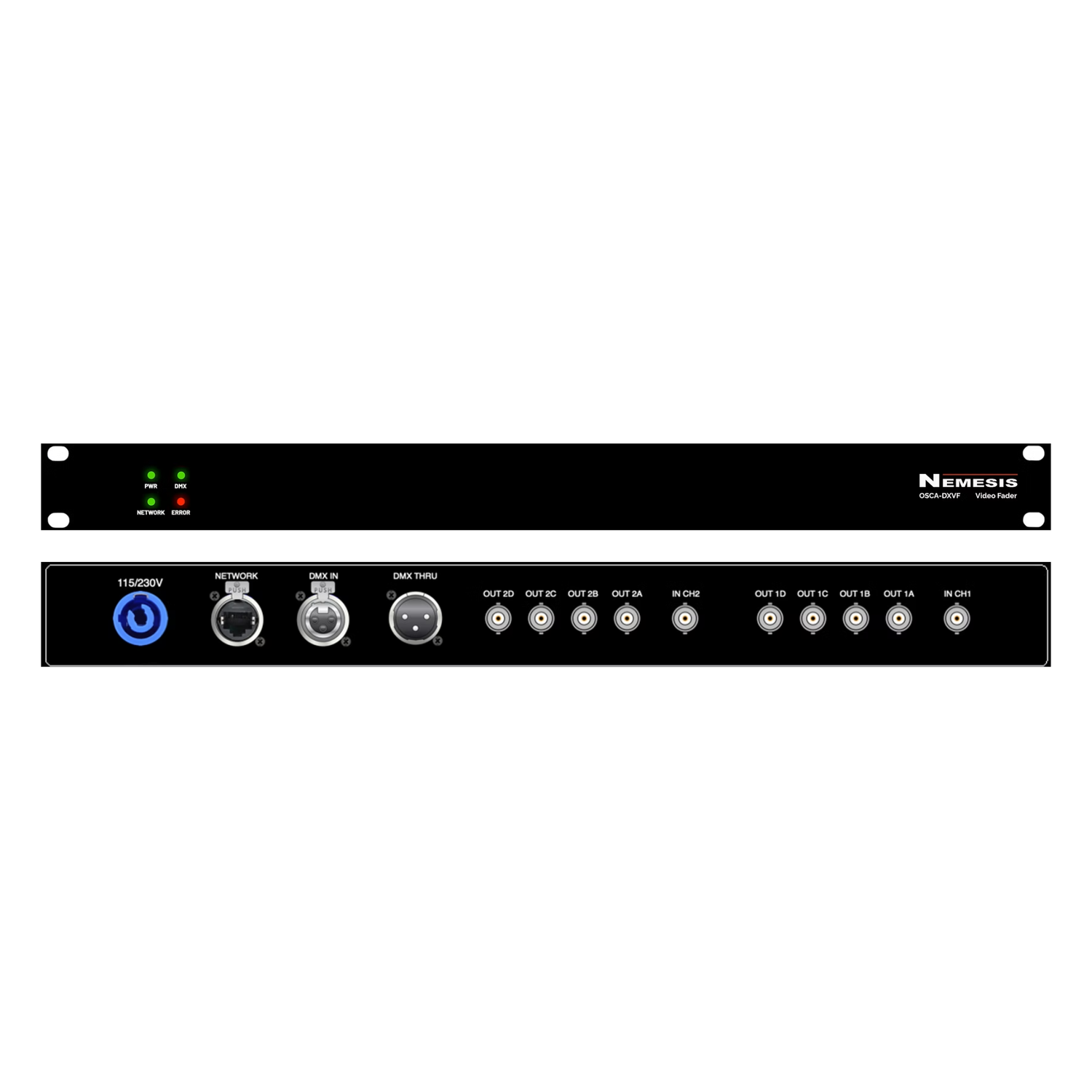

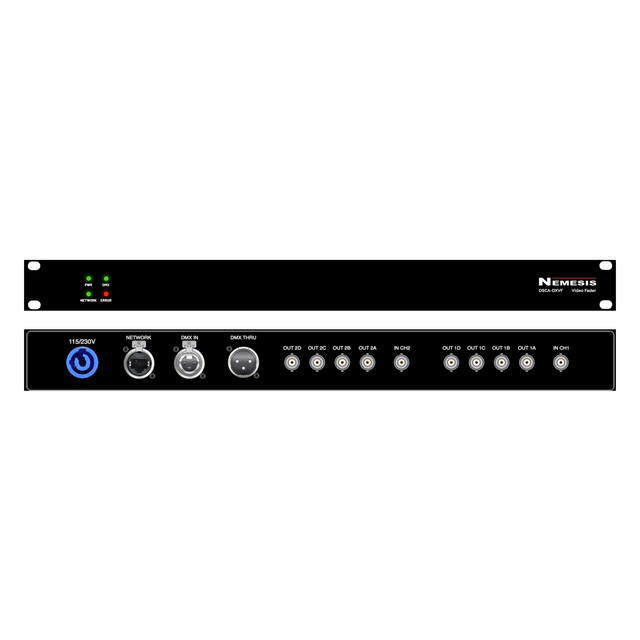

Nemesis OSCA-DXVF DMX Video Fader Unit

£2,117.86

Nemesis OSCA-DXVF DMX Video Fader Unit is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description
Building on the success of the proven Nemesis DMXVF video fader the new OSCA-DXVF adds OSC and other advanced features  whilst still maintaining all the old favourites.

The OSCA-DXVF is a Dual Channel DMX and OSC Controlled Video Fader designed to allow users to restrict light emission levels from monitor screens - particularly those mounted in an auditorium - when darkness is required during a production.

The OSCA-DXVF maintains video sync signal during a blackout avoiding ugly 'Signal Lost' messages which would otherwise be shown on modern LCD screens.

The exact brightness can be faded directly via OSC or DMX from 0 to 100% in 1% increments, effectively treating the video screen brightness like a conventional lighting fixture.

The OSCA-DXVF can form part of an extensive OSC network allowing lighting, sound, stage management and other departments to all control screen brightness if required.

With the addition of a OSCA-R5 button box different presets or states can be controlled at the push of a button allowing, for example, a musical director to dim certain screens as-and-when they wish.

​Under DMX control the OSCA-DXVF can directly interface with all modern lighting consoles.

Key Features:

Video:
  • 2 × Independent composite video channels
  • In-built 4-output Video Distribution Amplifier per channel
  • Fades input signal to black whilst retaining sync signal
  • Zero video latency
Control:
  • DMX mode mode
  • OSC mode
  • DMX with OSC fallback mode (OSC automatically takes over if DMX stream not detected)
  • Manual mode
  • Entirely separate channels - control one with DMX and the other with OSC
  • Each channel controlled by the same or separate OSC or DMX messages
  • DMX invert: video mixer (where max DMX  = max video)  or video blackout (where max DMX  = video blackout)
  • DMX thru
  • Remote set up and control over ethernet

 General:
  • 1U 19" rack mount
  • Front Panel LED display showing current status
  • 75Ω Video BNC In/Outs, 5-pin XLR DMX Connections with link-thru, industrial Ethercon network connector
  • Fully compatible with all 3rd party OSC commands and Nemesis OSCA range
  • Config download, backup and restore
  • Internet enabled for updates and upgrades
  • DHCP served or fixed IP address
  • Industrial Ethercon network connector
  • Multicolour LEDs showing network, DMX, action and power status

​​​Supplied in the box:
  • OSCA-DXVF
  • PowerCon to UK plug
